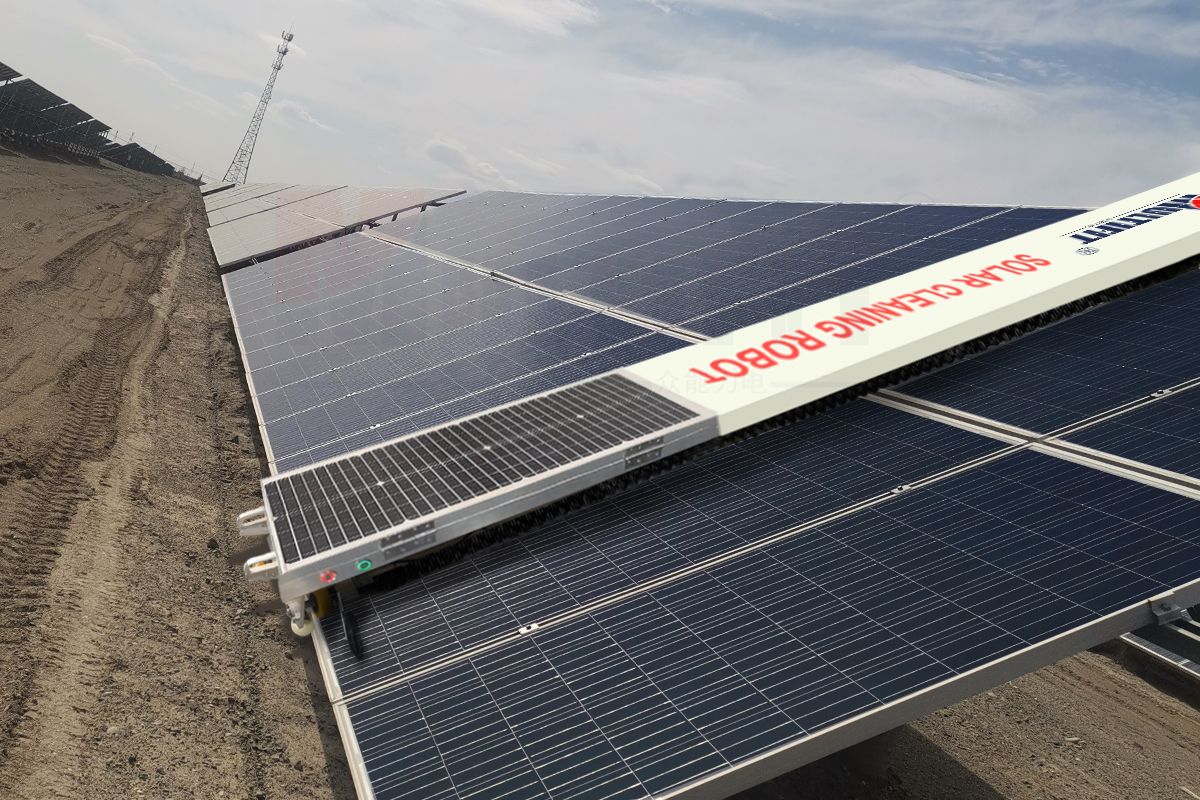

MULR1650 solar panel cleaning robot is for solar system cleaning & sweeping & dust removal & dirt washing
Video
Overview
Quick Details
- Machine Type:
-
Other
- Applicable Industries:
-
Solar panel cleaning
- After Warranty Service:
-
Video technical support, Online support, Spare parts
- Local Service Location:
-
None
- Showroom Location:
-
None
- Video outgoing-inspection:
-
Not Available
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
2 years
- Core Components:
-
Intelligent electronic control system
- Condition:
-
New
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
MULTIFIT
- Fuel:
-
Electric
- Certification:
-
ce
- Use:
-
solar panel cleaning
- Cleaning Process:
-
Cold Water Cleaning, Dry Cleaning
- Cleaning Type:
-
Auto brush, Industrial Ultrasonic Cleaner
- Material:
-
solar panel, Metal / Coil
- Generator Power:
-
90W
- Dimension(L*W*H):
-
See details
- Warranty:
-
2 years, 1 Year
- After-sales Service Provided:
-
Video technical support
- Product name:
-
1960mm solar panel cleaning robot
- Battery Capacity(Ah):
-
24V/10Ah(MULR*2 is 20AH)
- Solar panel:
-
40W
- Protection:
-
IP65
- Weight:
-
35.5kg
- Installation Site:
-
solar power plant
Product Details
The second generation cleaning robot has more advantages than the robots on the market in terms of performance, product design, intelligent control, etc., such as portability, long life, intelligent APP controller, and easy to disassemble, install, adjust and maintain brushes.
Product Features
1. Excellent performance: lithium battery, brushless motor, durable.
2. Automatic operation: automatic start and stop, automatic return, adaptive.
3. Light weight: no more than 40kg, easy to handle.
4. Long range: 800M.
5. Efficient cleaning: special brush, cleaner, single machine can clean 1.2MWp per day.
6. High cost performance: low cost, fast return.
7. Modular design: widely applicable to a variety of array layout, easy to install.
8. The system is equipped with water cleaning into two modes of anhydrous cleaning.
9. Own power supply system: self-charging, convenient and efficient, solar power charging, independent power supply, battery life of 6-8 hours.
Accessory
Internet of things technology application: independent control, grouping, automatic cleaning
Intelligent control: Mini APP control by mobile, automatic cleaning time and cleaning mode can be set
Solar power system: self-charging-comes with a solar power system, convenient and efficient, can last 8-10 hours
1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.
1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.
When the brush wears out, the cleaning ability decreases. You can adjust the brush downward to increase the cleaning ability
Lightweight equipment ≈23 kg,The whole machine is about 30kg, which is more than 30% lighter than similar products, and it is convenient to carry.
Reference solar panel array
Vertical, single row, solar photovoltaic panel （1650 wide as array *990）
before cleaning the solar panel，It is recommended to install ： Robot parking and Bridge device
Product advantages and product performance comparison
The second generation cleaning robot has more advantages than the robots on the market in terms of performance, product design, intelligent control, etc., such as portability, long life, intelligent APP controller, and easy to disassemble, install, adjust and maintain brushes.
Reference size for cleaning solar panels
Solar Panel 260Wp~300Wp
| Model | Power | Vmp V | Imp A | Voc V | Isc A | Size(mm) |
| MUL-260M | 260Wp | 30.13 | 8.63 | 36.16 | 9.41 | 1650*990*35 |
| MUL-265M | 265Wp | 30.24 | 8.77 | 36.29 | 9.55 | 1650*990*35 |
| MUL-270M | 270Wp | 30.32 | 8.91 | 36.38 | 9.71 | 1650*990*35 |
| MUL-275M | 275Wp | 30.44 | 9.04 | 36.53 | 9.85 | 1650*990*35 |
| MUL-280M | 280Wp | 30.51 | 9.18 | 36.61 | 10 | 1650*990*35 |
| MUL-285M | 285Wp | 30.64 | 9.31 | 36.77 | 10.14 | 1650*990*35 |
| MUL-290M | 290Wp | 30.72 | 9.44 | 36.84 | 10.29 | 1650*990*35 |
| MUL-295M | 295Wp | 30.82 | 9.57 | 36.98 | 10.43 | 1650*990*35 |
| MUL-300M | 300Wp | 30.91 | 9.71 | 37.09 | 10.58 | 1650*990*35 |
Solar panel cleaning robot Data parameter
Model
MULR1650
Module Length(mm)
1650(1640)
Obstacle crossing ability
20 mm
Traveling distance
0-800m
Width of machine
340mm
Weight of machine
35.5kg
Working Time
8-10 Hours
Water Used Per Hour
270L/H (0.3mpa)
Generator Power
90W
Solar Panel
40w
Traveling speed
15-20 m/min
Battery Capacity
24V/10Ah(MULR*2 is 20AH)
Brush Life
2-3 Years
Height of machine
2020mm
Ambient Temperature
～40℃-70℃
Cleaning Mode
Dry Cleaning
Cleaning way
One time/Many times/The Rubbing
Other special functions
Speed control of forward and reverse
Optional Configuration
The bridge device
Water washing device
The wireless remote controller/Mini APP of Wechat
Warranty
The solar panel cleaning robot has a 2-year limited product warranty. Can be customized according to customer needs (solar panel size)
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
