MULTIFIT feature upgrade MULR-C03 220V AC accommdate Solar Panel Cleaning Brush (AC & DC Dual power)

Short Description:

MULTIFIT specifcally designs letric water brushes for cleaning solar panels,and designs convenient and affordable solar cleaning products for the majorityof users.

double-head cleaning brush can be used for double-speed and convenientcleaning;

The brush head has a water outlet, and when the brush head rotates, water willflow out.

Clean brush about solar panel: double hand

Model: MULR-C03

Utilization voltage: 24V

Water pump type: DC pump

Lithium battery: 24V/10Ah

Battery discharging time: 5-6h

Handle Length: 1.5-3.5M / 1.7-5.5M / 1.9-7.5M(Optional)

Brush material: Nylon

Brush size: 280mm

Send email to us

Product Detail

Product Tags

Electric Water Brush

MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.

Single-head cleaning brush can be used to clean small area solar panels，The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.

Electric Water Brush

We have our own R&D team

Cleaning brush is one of the products with the least investment in solar panel cleaning equipment
The water pipe is equipped with a water control valve, which can be connected to the user's water source

Product Features

The length of the water supply pipe can be customized, please call for consultation
The angle of the brush head fits the solar panel, which can be adjusted with the angle of the solar panel.
The shorter the pole, the lighter it is, the telescopic pole can be adjusted in length
The bristles are moderately soft and hard, and do not harm the photovoltaic panel

Application Scenario

MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.

Single-head cleaning brush can be used to clean small area solar panels，The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.

Factory roof solar system

Mountain

High Pile

Pond

Sloping roof solar system

Product Details

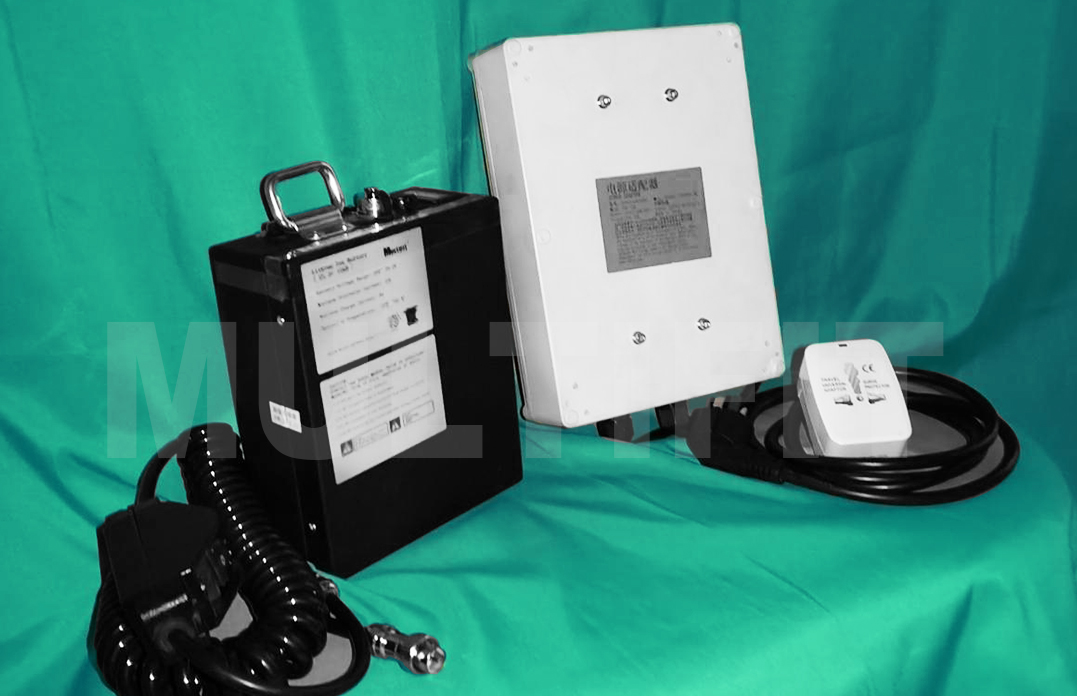

24V 10Ah Life Bo4 Battery

Save Water at the Outlet

Outlet Pipe Joint

Two Brush Heads Clean Faster

Telescopic Adjustment Rod

Big Backpack

Electric Water Brush Parameters

Spare Part List		Technical Parameter
Applicable voltage		110-240V
Drive motor	Type	DC motor
	Utilization voltage	24V
	Power	52.8W*2
	Speed	128rpm
	Torsion	1.2N.M
Water pump	Type	DC pump
	Utilization voltage	24V
	Power	60W
	Water suction	1.5M
	Head	50M
	Usage	Bucket self-priming, with self-priming filter head
	Flow	5L/Min
Handle	Telescopic material	Aluminum alloy
	Wall thickness	1mm-1.2mm
	Diameter	43mm
	Length	1.5-3.5m / 1.7-5.5m / 1.9-7.5m(Opetional)
Brush	Diameter	280mm
	Material	Nylon
	Number of bristle circles	Four or eight

Technical Parameters (double head)MULR-C

MODEL	Power Supply	Water Supply	Accessory
MULR-C01	Be connected to 110-240V power source	Water pipe contains water control valve, can be connected to user’s water source	Water pipe and accessories1 Cable extension line1 Telescopic rod1 Adapter1 Brush head assembly * 1 set (including 1 pair of brush discs)
MULR-C02	Be connected to lithium battery (battery can be put in backpack and carried by operator)	Water pipe contains water control valve, can be connected to user’s water source	Battery 1 Water pipe and accessories1 Backpack1 Push button switch spring wire1 Telescopic rod1 Brush head assembly 1 set (including 1 pair of brush discs)
MULR-C03	Connect to 110-240V power source, or to lithium battery (user can choose suitable type for different cleaning environment)	Water pipe contains water control valve, can be connected to user’s water source	Battery 1 Adapter1 Water pipes and accessories1 Backpack1 Cable extension line1 Push button switch spring wire1 Telescopic rod1 Brush head assembly 1 set (including 1 pair of brush discs)

Use Cases

Package & Shipping

Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.

Multifit Office-Our Company

HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.

Come with MULTIFIT, to power a better world!
Multifit is expert with ISO9001:2008 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 coun-tires for 10 years, covering solar inverters, solar cleaning robots, solar street lights, ect.And, Multifit has experienced designing and installation teams on solar system, either off grid or on gr-id. This ability can help us better support our customer's capability to win new sales and do an excell-ent maintenance.
