Mppt solar charger controller-Off Grid
Overview
Quick Details
- Warranty:
-
5YEARS, 25 Years Life Time
- Free installation service:
-
NO
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Vmaxpower
- Model Number:
-
MU-SGS5KW
- Application:
-
Home, Commercial, Industrial
- Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
- Controller Type:
-
MPPT, PWM
- Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting,BIPV Mounting
- Load Power (W):
-
5000W
- Output Voltage (V):
-
110V/120V/220V/230V
- Output Frequency:
-
50/60Hz
- Work Time (h):
-
24Hours
- Certificate:
-
CE/ISO9001
- Pre-sales project design:
-
Yes
- Product name:
-
On-grid Solar Power System
- Combiner box:
-
Anti-lighting Function
- Mounting type:
-
6m C type steel
- Solar panel:
-
Monocrystalline Silico
- AC output:
-
110V/120V/220V/230V
- Technical Support:
-
Complete Technical Support
- Capacity:
-
5000W
System Introduction
MUC-MB series adopted with auto cool, high conversion efficiency, LCD display and free PC software. It features an efficient MPPT control algorithm to track the maximum power point of the PV array in any environment, Greatly improve the utilization of solar panel.

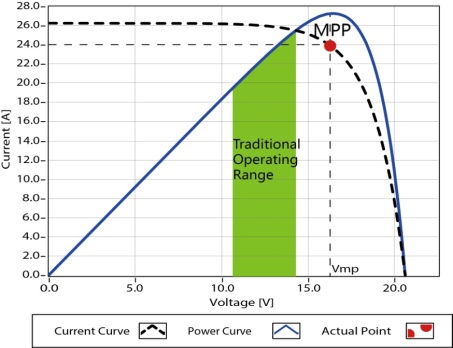

MPPT controller can improve the utilization efficiency of the solar array by 20% - 60% better than the PWM controller (the efficiency changes according to the different usage environment background). In practical application, multiple MPPT points may occur in the array due to the blocking of clouds, branches, or snow cover, but only one of these MPPT points is the actual maximum power point, as shown in the figure below:
Bimodal map of maximum power point tracking
Scope of Application
MPPT controller can be widely used in off-grid solar system, communication base station solar system, household solar systems, street light solar systems,field monitoring and other fields.
Connection Diagram
MUC-MB series MPPT Solar charger controller
Operating ambient temperature:-20℃~+50℃
Storage temperature: -40℃~+75℃
IP levels of protection: IP43 Maximum wiring size: 35mm²
■Support multi-machine parallel, to achieve the system power upgrade.
■ With HD LCD display function, you can view the device functioning data and working status.
■ Approved by CE, ROHS, FCC certification; can meet customers requirements about all different kinds of certification.
■ The warranty is 2 years. It can be extended to 3 upto 10 years of warranty service.
Products has its own unique advantages
All kinds of working status: All kinds of working status are directly displayed on the screen, easy for users to access.
High voltage battery system solutions: Wide adaptation to high voltage battery systems and provide solutions for special applications.
Business Model: Accepting a wide range of input photovoltaic voltage,our MPPT contorller is suitable for a variety of common solar panel specifications.
The parallel machine function: Expand the parallel machine function to meet the application of multiple products combinations.
Efficient MPPT controller algorithm: MPPT efficiency is not less than 99.5%, the whole MPPT conversion efficiency can be up to 98%.
Charging mode: Three charging phases (constant current, constant pressure, floating charge), can effectively extend the lifespan of the battery.
The load mode: The Load mode ：constant on / off mode and light control mode.
Current-limiting charging function: When the user's panel power is too large, the controller automatically maintains the charging power, and the charging current will not exceed the rated value.
What we can do for you
1. Work with you for information necessary to verify the system power you actually needs;
2. Manufacture all systems parts in good quality and cost based on the confirmed terms;
3. Customize the solar system to meet your installation site, especially for the supporting structures;
4. Provide the system installation guides after the system arrive;
5. 5 year system warranty under normal operation;
6. On line technical support to any possible problem after system installation.
Technical Data
| Model | MUC-MB 40A | MUC-MB 50A | MUC-MB 60A | ||
| Category of the product | Controller type | Controller with maximum power point tracking (MPPT) function | |||
| MPPT productiveness | ≥99.5% | ||||
| system voltage | automatic recognition | ||||
| Heat dissipation method | natural cooling | ||||
| System voltage identification range | DC9V~DC15V（12V sys）DC18V~DC30V(24V sys)DC32V~DC40V(36V sys)DC42V~DC60V(48V sys) | ||||
| Input characteristics | PV maximum open circuit voltage (VOC） | DC150V | |||
| Start the charging voltage point | Is 10V higher than the battery voltage | ||||
| Input the low-voltage protection point | 2V above the current battery voltage |
5V above the |
|||
| Enter the overvoltage protection point | DC150V | ||||
| Enter the overvoltage recovery point | DC145V | ||||
|
Solar panel rating |
12V System | 600W | 700W | 850W | |
| 24V System | 1000W | 1200W | 1500W | ||
| 36V System | 1500W | 1800W | 2200W | ||
| 48V System | 2000W | 2500W | 3000W | ||
| Charge characteristic | Suitable battery type | Sealed lead acid batteries, colloidal lead acid batteries, lithium batteries | |||
| Charging rated current | 40A | 50A | 60A | ||
| Output stability precision | ≤±1.5% | ||||
| Charging method | Three stages: constant current (fast charge), constant pressure, floating charge | ||||
| Load characteristic | load voltage | Same as battery voltage | |||
| Rated load current | 40A | 50A | 60A | ||
| Load control method | Open mode / normal off mode / light control mode | ||||
| low voltage protection | The default is 11V | ||||
| Display | display mode | LCD& back lit display | |||
| Other properties | defencive function | Input and output undervoltage protection, anti-reverse connection protection, etc | |||
| operating ambient temperature | -20℃~+50℃ | ||||
| storage temperature | -40℃~+75℃ | ||||
| IP levels of protection | IP43 | ||||
| Maximum wiring size | 35mm² | ||||
| net weight (kg) | 2.4 | ||||
| rough weight (kg) | 2.7 | ||||
| product size (mm) | 300*200*75 | ||||
| Package size (mm) | 320*230*120 | ||||
